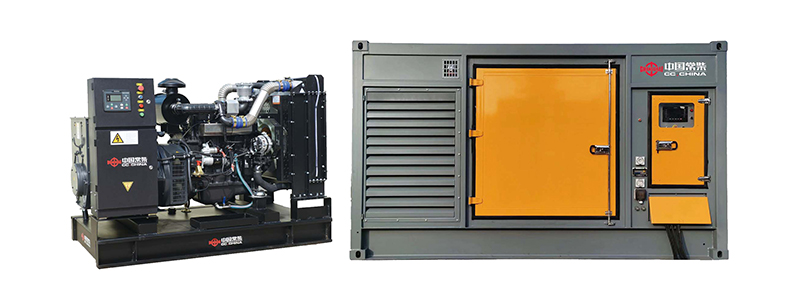

Changchai K-series Multi-Cylinder Diesel Generator Set

Product

Multi-Cylinder Diesel>> Light Diesel>> Single Cylinder Diesel>> Unit Series>> Gasoline Engine>> Outboard Engine>> Intelligent Integrated Chargin>> Other Products>>

Product Features

• Matched and optimized engine configuration, excellent and stable performance, and can meet National III and National V emission certifications.

• Equipped with a stable and reliable brushless maintenance-free generator with wide environmental adaptability.

• Intelligent control system, which can be configured with trailer power station, silent generator set, etc.

• Widely used in factories, mines, buildings, telecommunications, construction, ships, oil fields and railways.

• Changchai uses advanced technology, lean manufacturing process, scientific management system and sound service network, and the spirit of continuous innovation and development to provide every user with stable, comprehensive, safe and efficient power solutions.

Type of unit	rated power (kw)	rated power (kVA)	Backup power (kw)	Backup power (kVA)	rated current (A)	motor rated power (kw)	motor Backup power (kw)	100% load rating Fuel consumption (L/H)	Speed regulation mode	Type of motor	Motor capacity (kw)	Insulation level	Protection level	Wiring method	Steady-state voltage Adjustment rate (%)	control system	Overall dimension (mm)	weight (kg)
CC100KS	95	118.75	105	131.25	171	105	116	≤21.8	Electrically controlled	Brushless self-excitation	100	H	IP23	Three-phase four-wire	≤±1	Electronic control	23008501200	1600
CC120KS	106	132.5	117	146.25	191	120	132	≤24.3	Electrically controlled	Brushless self-excitation	110	H	IP23	Three-phase four-wire	≤±1	Electronic control	23008501200	1700
CC140KS	120	150	132	165	217	138	152	≤27.5	Electrically controlled	Brushless self-excitation	120	H	IP23	Three-phase four-wire	≤±1	Electronic control	25009501400	1900
CC150KS	136	170	150	187.5	245	150	165	≤31.2	Electrically controlled	Brushless self-excitation	140	H	IP23	Three-phase four-wire	≤±1	Electronic control	25009501400	1950
CC160KS	150	187.5	165	206.25	270	168	185	≤34.4	Electrically controlled	Brushless self-excitation	150	H	IP23	Three-phase four-wire	≤±1	Electronic control	25009501400	2000
CC200KS	180	225	200	250	325	208	228	≤41.2	Electrically controlled	Brushless self-excitation	180	H	IP23	Three-phase four-wire	≤±1	Electronic control	25009501400	2100
CC220KS	200	250	220	275	361	228	25	≤45.9	Electrically controlled	Brushless self-excitation	200	H	IP23	Three-phase four-wire	≤±1	Electronic control	260010001500	2300
CC280KS	250	312.5	275	343.75	451	280	308	≤57.4	Electrically controlled	Brushless self-excitation	250	H	IP23	Three-phase four-wire	≤±1	Electronic control	260010001500	2300
CC300KS	280	350	300	375	506	307	338	≤64.2	Electrically controlled	Brushless self-excitation	280	H	IP23	Three-phase four-wire	≤±1	Electronic control	300012501700	2450
CC330KS	300	375	330	412.5	541	339	373	≤68.8	Electrically controlled	Brushless self-excitation	300	H	IP23	Three-phase four-wire	≤±1	Electronic control	300012801750	2750
CC400KS	360	450	400	500	650	405	445	≤82.6	Electrically controlled	Brushless self-excitation	360	H	IP23	Three-phase four-wire	≤±1	Electronic control	330014001900	3550
CC450KS	400	500	440	550	721	459	505	≤91.8	Electrically controlled	Brushless self-excitation	400	H	IP23	Three-phase four-wire	≤±1	Electronic control	330014001900	3650
CC500KS	450	562.5	500	625	812	505	560	≤103.2	Electrically controlled	Brushless self-excitation	450	H	IP23	Three-phase four-wire	≤±1	Electronic control	340014501930	3700
CC550KS	500	625	550	687.5	902	565	610	≤114.7	Electrically controlled	Brushless self-excitation	500	H	IP23	Three-phase four-wire	≤±1	Electronic control	340014501930	3900
CC600KS	550	687.5	600	750	992	602	662	≤126.1	Electrically controlled	Brushless self-excitation	560	H	IP23	Three-phase four-wire	≤±1	Electronic control	350015501980	3950
CC700KS	600	750	660	825	1082	660	726	≤137.6	Electrically controlled	Brushless self-excitation	600	H	IP23	Three-phase four-wire	≤±1	Electronic control	350015501980	4000
CC800KS	720	900	800	1000	1300	782	860	≤165.2	Electrically controlled	Brushless self-excitation	720	H	IP23	Three-phase four-wire	≤±1	Electronic control	450017002100	5800
CC900KS	800	1000	880	1100	1443	882	970	≤182.6	Electrically controlled	Brushless self-excitation	800	H	IP23	Three-phase four-wire	≤±1	Electronic control	450018002500	6500
CC1000KS-1	1000	1250	1100	1375	1804	1118	1230	≤229.4	Electrically controlled	Brushless self-excitation	1000	H	IP23	Three-phase four-wire	≤±1	Electronic control	550023002600	12500
CC1100KS-1	1100	1375	1200	1500	1985	1220	1342	≤252.3	Electrically controlled	Brushless self-excitation	1100	H	IP23	Three-phase four-wire	≤±1	Electronic control	550023002600	13000
CC1200KS-1	1200	1500	1300	1625	2165	1345	1480	≤275.2	Electrically controlled	Brushless self-excitation	1200	H	IP23	Three-phase four-wire	≤±1	Electronic control	600023002600	13500
CC1500KS-1	1500	1875	1650	2062.5	2706	1680	1850	≤344.1	Electrically controlled	Brushless self-excitation	1500	H	IP23	Three-phase four-wire	≤±1	Electronic control	650025002800	16500
CC2000KS-1	2000	2500	2200	2750	3608	2205	2426	≤458.8	Electrically controlled	Brushless self-excitation	2000	H	IP23	Three-phase four-wire	≤±1	Electronic control	750027002800	18000
