Product Features
Lightweight
Changchai G series multi-cylinder diesel engine is selected, and the size of the whole unit is smaller among the same power units in the industry.
Intelligent
Optimize the design of the controller, realize wireless detection and control on the mobile phone, and it is easy to use.
Environmental Protection
It can meet non-road National III, National IV and EU Euro V emissions.
Energy-saving
The diesel engine of the generator set in the same power segment has lower power fuel consumption and is more focused on fuel and energy saving.
| Type of unit | CC30ES | CC40ES | CC50ES | CC60ES | CC75ES | CC95ES | |
| Unit parameters | Power Rating (Kva) | 30 | 40 | 50 | 63 | 75 | 100 |
| Standby Power (Kva) | 33 | 44 | 55 | 70 | 82 | 110 | |
| Rated Power ((Kw) | 25 | 32 | 40 | 50 | 60 | 80 | |
| Standby Power (Kw) | 28 | 35 | 44 | 55 | 66 | 88 | |
| Rated voltage (V) | 400/230 | ||||||
| Current Rating A) | 36.1 | 46.2 | 57.7 | 72.2 | 86.6 | 115.5 | |
| Rated frequency (Hz) | 50 | ||||||
| Power factor (cOs φ) | 0.8 | ||||||
| control system | Electronic control | ||||||
| Wireless control | Optional | ||||||
| ATS | Optional | ||||||
| Wiring method | Three-phase four-wire | ||||||
| Silent unit noise dB (A) | ≤68 | ||||||
| Diesel engine model | 4G33 | 4G33TC | 4G33TCl | 4G33V16 | 4H11 | 4H11V16 | |
| motor | Rated Power/Speed (Kw)/(rpm) | 32/1500 | 42/1500 | 50/1500 | 62/1500 | 75/1500 | 91/1500 |
| Standby power r (Kw) | 35 | 46 | 55 | 68 | 83 | 100 | |
| Air intake mode | Naturally aspirated | Turbocharging | Turbo intercooling | ||||
| Emission standards | Country II (optional Country III, Country IV) | ||||||
| Number of cylinders-bore x stroke (mm) | 4-95×115 | 4-105×127 | |||||
| Compression ratio | 18.5 | ||||||
| Speed regulation mode | Electrons | ||||||
| Displacement (L) | 3.26 | 4.4 | |||||
| Lube Oil Capacity (L) | 9 | 10 | 12 | ||||
| Fuel consumption at 100% full load (L/h) | ≤7.8 | ≤10.3 | ≤12.3 | ≤15.2 | ≤18.1 | ≤23.3 | |
| Start the system | DC12V electric start | ||||||
| Generator | Motor model | DAC184G | DAC184J | DAC224D | DAC224E | DAC224F | DAC274C |
| Rated Capacity (Kw) | 25/28 | 32/35 | 40/44 | 50/55 | 60/66 | 80/85 | |
| Insulation level | H | ||||||
| Protection level | IP23 | ||||||
| Excitation method | Brushless self-excitation | ||||||
| Voltage adjustment range | ≥5% | ||||||
| Dimensions, weight | Overall dimension (mm) | 1600×600×1000 | 1600×600×1000 | 1700×600×1100 | 800×750×1100 | 2000×850×1100 | 2050×850×100 |
| Open frame unit weight (kg) | 525 | 590 | 625 | 668 | 700 | 900 | |
| Silent dimensions | 2100×850×1150 | 2100×850×1150 | 2300×950×1200 | 2350×950×1250 | 2800×1050×1200 | 2800×1050×1250 | |
| Silent unit weight (kg) | 735 | 800 | 980 | 1050 | 1100 | 1300 | |

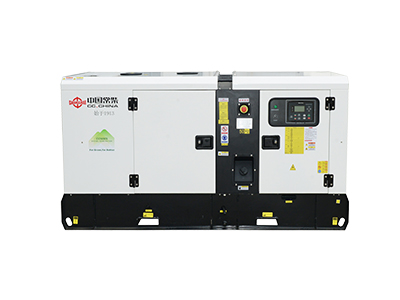

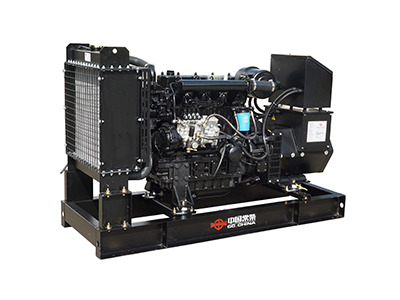

| Type | Open frame/silent, optional mobile trailer model | ||||||
| Tank Capacity (L) | Full load use ≥ 10h | ||||||
