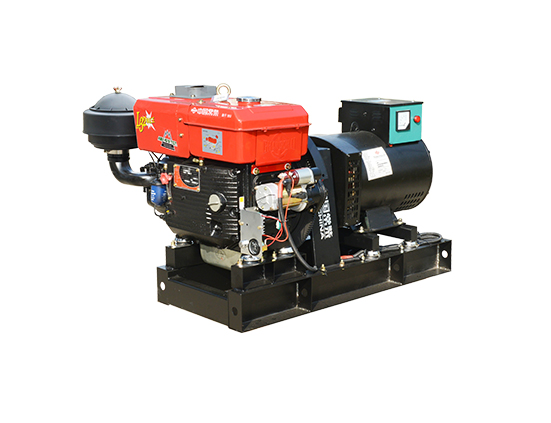

Product Features
• Excitation brush motor, built-in AVR, more stable voltage.
• Extra large chassis fuel tank, lasting for more than 8 hours of continuous operation.
• Self-charging function with voltage stabilizer to protect the battery.
• The upper water tank is made of alloy nylon material, which is strong and durable.
• Direct connection transmission, beltless integrated design, more efficient and stable output.
• Widely used in (temporary) electricity consumption in industry, commerce, schools, hospitals, etc.
| Model | 12FD | 15FD | 20FD | |
| Generator | Rated frequency (Hz) | 50 | ||
| Rated power (kW) | 12 | 15 | 20 | |
| Rated voltage (V) | 230/400 | |||
| Rated current (A) | 22.8 | 30.4 | 36.5 | |
| Phase number | Three phase | |||
| Power factor | 0.8 hysteresis | |||
| Insulation level | B | |||
| Excitation method | Self-excitation | |||
| motor | Engine model | L24M | L28M | L32M |
| Cylinder bore * travel (mm) | 115*120 | 125*120 | 130*125 | |
| Calibration speed (r/min) | 2200 | |||
| Calibrated Power (kw) | 17 | 20 | 24 | |
start method | Hand start or electric start | |||
Fuel tank volume (L) | 16 | 16 | 16 | |
Lubricating oil volume (L) | 3 | 3 | 3 | |
Fuel consumption (g/kw.h) | ≤235 | ≤240 | ≤240 | |
| Generator set | Complete machine size (mm) | 1170*915*1030 | 1170*940*1030 | 1170*940*1030 |
Net weight (kg) | 324 | 342 | 347 | |
Transmission method | Direct connection | Direct connection | Direct connection | |
Rack shock pad | straps | straps | straps | |
Small control cabinet | straps | straps | straps | |
