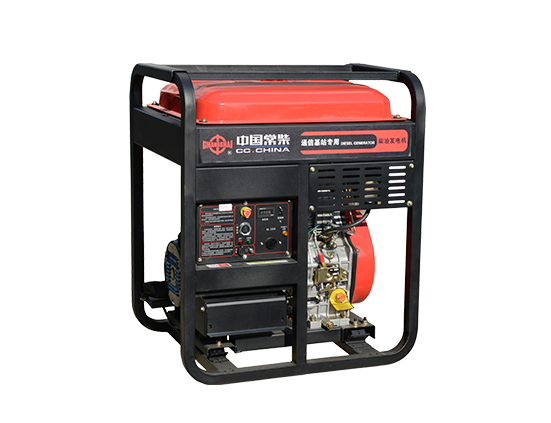

Applicable scenarios of Changchai intelligent cloud-controlled generator set: the base station is placed fixedly due to frequent power outages; Power backup guarantee for key base stations; Pre-deployment of planned power outage base stations; Flood season guarantee; One of the solutions for backup power guarantee of communication base stations. (need to be added)
Product Features
• Remote control of the generator set: remote start, shut down, load conversion and other operations of the generator set.
• Real-time monitoring: generator fuel balance, engine speed, oil pressure, cooling water temperature, fuel balance, battery voltage; Parameters such as real-time voltage of base station backup battery pack.
• Backup battery management: The backup battery can be remotely discharged and activated and repaired online.
• Unit authority control: The system has three-level authority management, can establish multiple manager accounts, and can assign the operating authority of the unit.
• Unit operation statistics: operating time statistics, fault alarm statistics, maintenance record statistics.
• Large-capacity fuel tank design reduces maintenance frequency and saves maintenance costs.
| model | Intelligent cloud control generator set | |
| Generator set | Rated frequency (Hz) | 50 |
| Rated power (kW) | 8.0 | |
| Rated voltage (V) | 220/230/240 | |
| Rated speed (r/min) | 3000 | |
| Phase number | Monophase | |
| Power factor (cosφ) | 1.0 | |
| Excitation method | Self-excited constant voltage | |
| DC output (optional) | 12V/8.3A | |
| How it works | 12 hours of continuous work | |
| Structure mode | Open frame electric start | |
| Connection mode | Drive shaft rigid coupling | |
| Total mass (Kg) | 145 | |
| Pack Dimensions (L x W x H) (mm) | 780×585×930 | |
| Engine | Model | 1100F |
| Type | 4-stroke, single-cylinder, air-cooled, direct-injection diesel | |
| Continuous power output (kW/rpm) | 10/3000 | |
| Cylinder bore × travel (mm) | 100×85 | |
| Displacement (L) | 0.667 | |
| Cooling method | Forced air cooling | |
| lubrication system | Pressure splash compound | |
| Lube Oil Capacity (L) | 1.8 | |
| Starting mode | Electric start | |
| fuel | 0 # (summer)-10 # (winter)-35 # (severe cold) diesel | |
| Fuel Tank Capacity (L) | 50 | |
| Low oil pressure alarm system | Have | |
