Changchai DC parking charging generator set series, as a backup power supply for vehicle battery charging, is an essential first choice for matching parking air conditioners for long-distance buses, engineering trucks, excavators, building tower cranes, etc., bringing you cool care, strong power and extraordinary experience in hot summer.
Product Features
Excellent Power (inconsistent with the following content)
Changchai air-cooled series diesel engines are different from gasoline-to-diesel power in other markets.
Rugged
Exquisite plastic spraying, reinforced rubber shock-absorbing pad, the overall structure is more reliable.
Smooth Output
All-copper motor, good insulation, high conversion efficiency and stable power generation performance.
Convenient Start
Configure the mobile APP to observe the running status in real time, and realize the automatic start and stop of the mobile phone.
Easy to Carry
Lightweight and compact design, easy to move and use.
Control Stability
Changchai independently developed LCD controller, which truly realizes automatic start and stop and has a long service life.
| Nature | 24V DC parking charging generator set (2FD series) | ||

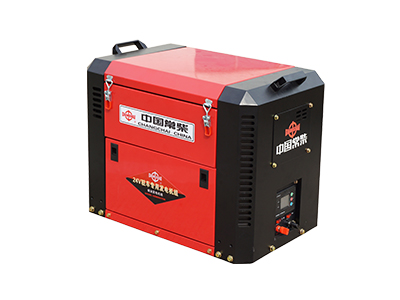

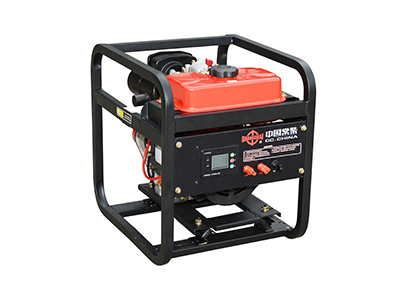

| Open shelf | Silent model | ||
Motive force | Power model | 173FM | |
| start method | Hand start/electric start | ||
| Displacement (cc) | 247 | ||
| Rotational speed (rpm/min) | 3000 | ||
| Oil Capacity (L) | 0.75 | ||
| Diesel Capacity (L) | 6 | ||
Generator | Operating voltage (V) | 25~28 | |
| No-load voltage (V) | 32 | ||
| Maximum charging current (A) | 80 | ||
| Power Rating (kVA) | 2 | ||
| Insulation level | F | ||
| 7M Noise (dB) | ≤78 | ||
| Weight (kg) | 46 | 72.5 | |
| Overall dimensions (L x W x H) (mm) | 520×435×500 | 650×450×500 | |
