Product Features:
Powerful
Changchai's independent air-cooled series diesel engines provide strong, reliable and continuous power.
High Conversion Rate
High-density all-copper motor, F-class or above insulation, stable output, high conversion efficiency, economy and energy saving.
Smooth Output
Intelligent inductive + capacitive adjustment AVR, stable voltage and small waveform distortion.
Numeric Panel
Large digital display panel, reasonable functional area zoning, four-in-one voltage, frequency, timing and low oil pressure alarm.
Equal Power Output
Both single and three phases can be output and can adapt to different types of loads.
Easy to Carry
Compact design, lightweight construction, wheeled with armrest for easy movement.

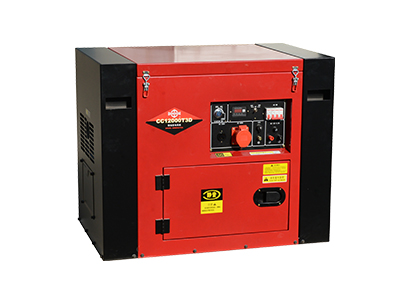

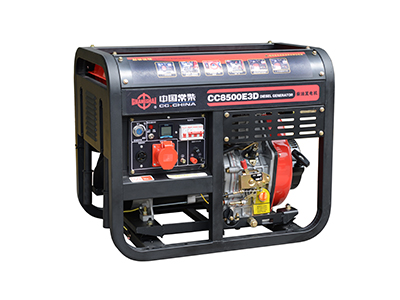

model | Open shelf | Silent model | ||||||
| 5KW | 6KW | 7KW | 8KW | 12KW | 5KW | 7KW | 8KW | |
| CC6500E3D | CC8500E3D | CC10000E3D | CC12000E3D | CC16000E3D | CC6500T3D | CC10000T3D | CC12000T3D | |
frequency (Hz) | 50/60 | 50/60 | ||||||
Alternating current voltage (AC) (V) | 220/380;230/400,240/415 | 380-400 | 220/380;230/400,240/415 | |||||
Direct current voltage (DC) (V) | 12 | 12 | ||||||
Direct current (DC) (A) | 8.30 | 8.30 | ||||||
Power speed (rpm) | 3000/3600 | 3000/3600 | ||||||
Power factor (cosφ) | 0.8 | 0.8 | ||||||
Net weight (kg) | 115 | 125 | 130 | 135 | 240 | 165 | 178 | 188 |
Rated power cop/max (kw) | 4.5/5.0 | 5.5/6.0 | 6.5/7.0 | 7.5/8.0 | 11/12 | 4.5/5.0 | 6.5/7.0 | 7.5/8.0 |
Start the system | electric start | electric start | ||||||
Power model | 186FAM | 192FAM | 192FAM | 1100F | 292F | 186FAM | 192FAM | 1100F |
Type | Single cylinder, vertical, four-stroke, direct injection, air-cooled diesel engine | Twin-cylinder | Single cylinder, vertical, four-stroke, direct injection, air-cooled diesel engine | |||||
Cooling method | air cooling | air cooling | ||||||
Crankshaft direction | Clockwise (facing flywheel end) | Clockwise (facing flywheel end) | ||||||
Rated output (kW) | 5.7/6.3 | 7.5/8.2 | 7.5/8.2 | 9.6/10.5 | 14/15 | 5.7/6.3 | 7.5/8.2 | 9.6/10.5 |
Cylinder bore x travel (mm) | 86*72 | 92*75 | 92*75 | 100*85 | 92*75 | 86*72 | 92*75 | 100*85 |
Displacement (cc) | 418 | 499 | 499 | 667 | 997 | 418 | 499 | 667 |
Tank Capacity (L) | 15 | 15 | 15 | 15 | 30 | 15 | 15 | 15 |
External dimensions (L × W × H) (mm) | 700*485*600 | 740*505*620 | 740*505*620 | 765*530*630 | 950*640*700 | 915*525*720 | 915*525*720 | 980*675*765 |
Oil Capacity (L) | 1.65 | 1.65 | 1.65 | 1.80 | 1.80 | 1.65 | 1.65 | 1.80 |
