Model/ | S195 | ZS195 | S1100A2 | ZS1100 | ZL1100 | ZS1105 | ZS1110 | ZS1115 | ZS1125A | ZS1130 | ZS1135 | |

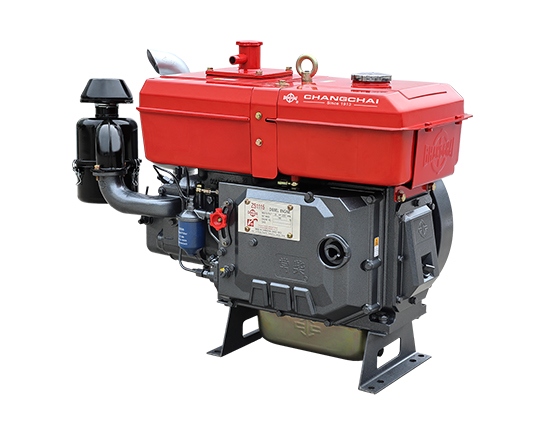

Engine type | Single-cylinder, horizontal, evaporative water-cooled, four-stroke | |||||||||||
Combustion chamber type | Eddy current |
Direct injection |
Eddy current |
Direct injection | ||||||||
Cylinder diameter (mm) | 95 | 95 | 100 | 100 | 100 | 105 | 110 | 115 | 125 | 130 | 135 | |
Stroke (mm) | 115 | 120 | 115 | 120 | 125 | 125 | ||||||
Displacement (L) | 0.815 | 0.815 | 0.903 | 0.903 | 0.942 | 0.996 | 1.093 | 1.194 | 1.473 | 1.659 | 1.789 | |
Calibrated Power (kW) | 10.6 | 10.6 | 12.1 | 12.1 | 12.7 | 13.2 | 14.7 | 16.2 | 20 | 23 | 25 | |
Calibration speed (r/min) | 2200 | |||||||||||
Maximum torque (N.m) | ≥51.6 | ≥51.6 | ≥58.8 | ≥58.8 | ≥61.7 | ≥64 | ≥71.5 | ≥78.8 | ≥97.2 | ≥111.8 | ≥121.5 | |
Maximum torque point speed (r/min) | ≤1760 | |||||||||||
Idle speed (r/min) | ≤800 | |||||||||||
Starting mode | Hand or electric start | |||||||||||
Net mass (kg) | 145 | 145 | 155 | 155 | 155 | 155 | 180 | 185 | 220 | 224 | ||
Overall dimensions [L×W×H (mm)] | 814×480×618 | 821×410×671 | 821×410×671 | 851×406×651 | 858×450×699 | 916×475×709 | ||||||
Product Features
1. Fuel-saving, easy to start.
2.The product series is complete, the technology is mature, and the general interchangeability is excellent.
Scope of Application：
Widely used in walking tractors, various transportation machinery, water pump units, irrigation machinery, construction machinery, generator sets, small construction machinery and other fields.
