Model/Items | H14 | H16 | EH36 | HS400 |

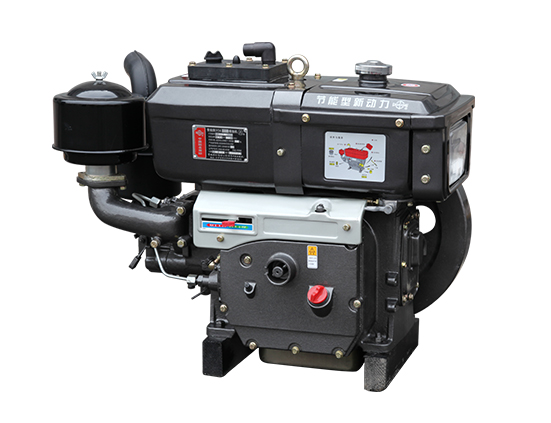

Engine type | Single-cylinder, horizontal, evaporative water-cooled, four-stroke | |||
Combustion chamber type |
Direct injection | |||
Cylinder diameter (mm) | 95 | 100 | 135 | 135 |
Stroke (mm) | 98 | 100 | 125 | 145 |
Displacement (L) | 0.694 | 0.785 | 1.789 | 2.076 |
Calibrated Power (kW) | 9.7 | 11.5 | 25 | 27 |
Calibration speed (r/min) | 2400 | 2400 | 2200 | 2200 |
Maximum torque (N.m) | ≥43.2 | ≥51.3 | ≥121.5 | ≥131.3 |
Maximum torque point speed (r/min) | ≤1920 | ≤1760 | ||
Idle speed (r/min) | ≤900 | ≤800 | ||
Starting mode | Hand or electric start | |||
Net mass (kg) | 110 | 120 | 224 | 265 |
Overall dimensions [L×W×H (mm)] | 730×390×570 | 978×470×782 | 1085×540×805 | |
Product Features：
1. Strengthen the fuel system, adopt new high-pressure fuel injection pump and P-type fuel injector, optimize the combustion process, low fuel consumption and low emissions.
2. Adopt a number of new technologies (laser quenching, ceramic infiltration gas ring, powder metallurgy valve seat, etc.), the product is wear-resistant, sealed and has a long life; It adopts double oil circuit lubrication and has good reliability.
3. Good interchangeability. Except for key parts, most parts can be used with Changchai R-series, ZS-series and L-series.
Scope of Application：
It can be used as supporting power for agricultural transport vehicles, tractors, water pump units, generator units, small construction machinery, etc.
